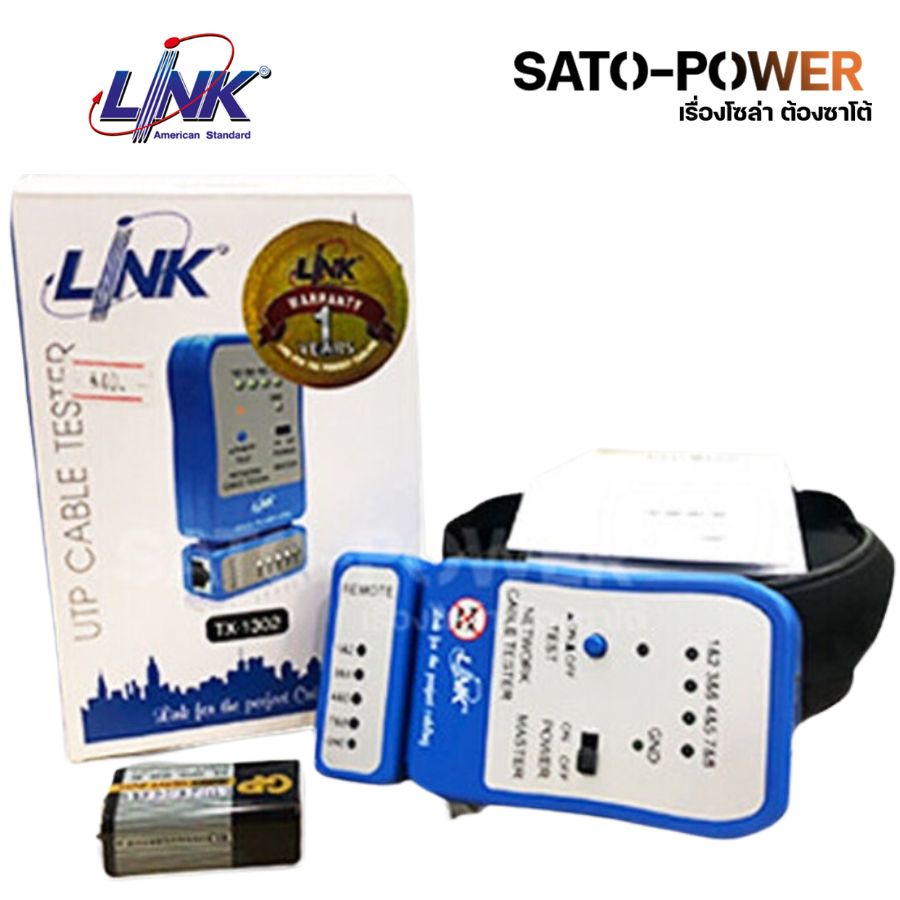

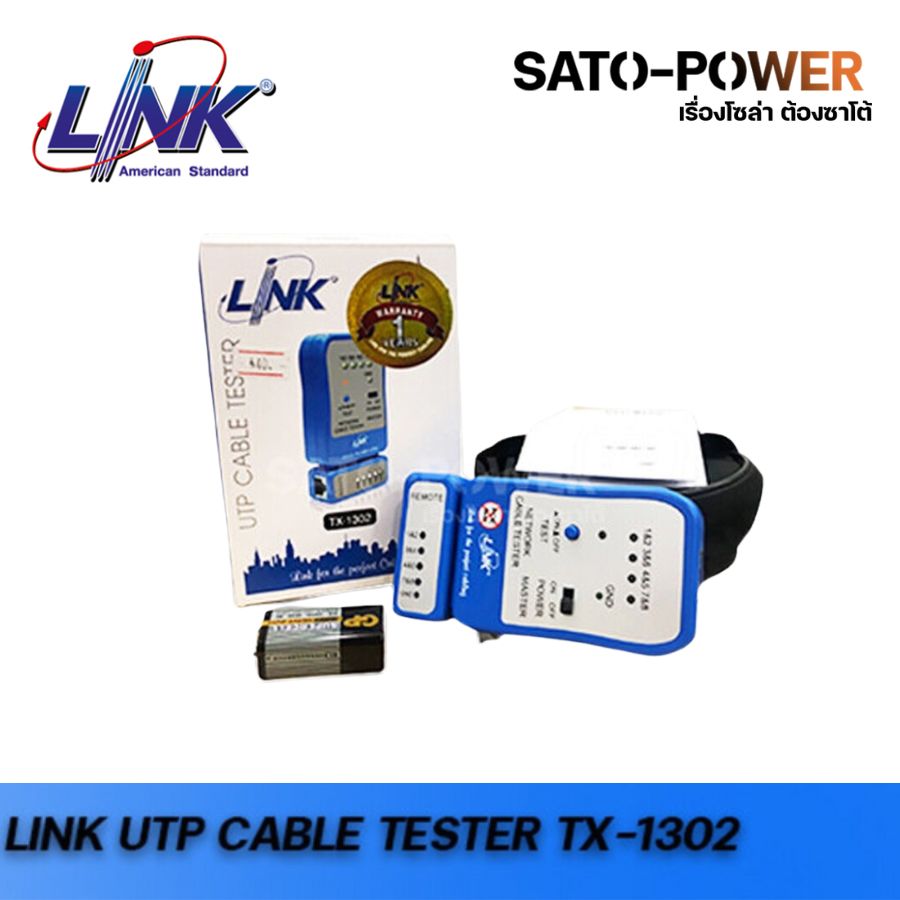

Network cable tester ":Link"
Features:
1*. can test the entire Network System or individual Path Cord.
2. Easy to verify cable continuously , open , Short and misswire.
3. can test either Twist Cable or Telephone cable
4. Can test RJ45,RJ11 and RJ12
*Please see the "WARNING " in below
LED DIRECTION:
1. Turn on the Power Button (The power LED ) light would Flash to show the tester is working Corrctly

2. Insert the Patch cord into the Master Remote jack. Press the test bottom, then the LED Light Would Flash as the as the following chart:

Telephone Twist Cable
Master Remote master Remote
12 12 12 36
36 36 36 12
45 45 45 45
78 78 78 78
12 12 12 36
36 36 36 12

3. The Master Jusrt shoe the situation of electric conduction.As folloeing :
Green Light -- Normal
Light off -- Open or no connection
The remote can show all erong siuation
As following :
Green Light -- Normal
Red Light -- Misswire
Light off -- Open or on connection

4. LED GND:
Green Light (Flash with LED 78)--STP Ground connection.

Note:
-the tester requires a DC 9 Voltage Battery
-Pleas make sure the Plug is crimped preprly before plugging the Patch Cord into tester .
-Please use qualifiede Crimping Tool

Warning
1.the cable tester can only test passive component such as patch cord or channel configuration
2.Please do not connect to any active devided with equipmentand system those are provided with power , or the cable tester will be damaged
นักหนัก 0.193 KG.
ขนาด กว้าง * ยาว * สูง = 10*19*5
